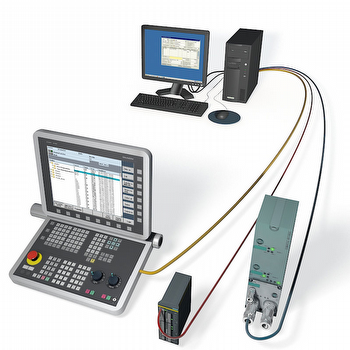

Inventcom’s standard software CNCnetPDM allows you to seamlessly integrate devices from different manufacturers with your existing IT infrastructure without the need for additional hardware or modifications of the equipment.
You can read data from devices by using their standard communication interface, translate it into comparable information and output it to your application. CNCnet PDM also enables communication between different machine types and their control from within your application.
Output example
FIG 1: Monitoring of machine state, spindle speed and feed rate
FEATURES
DEVICE CONNECTION
Establishes connections to remote devices by accessing and using their standard communication interface for example: Ethernet network, Serial interface, Bluetooth, USB, Manufacturer specific networks and bus-systems (HSSB, EIB, CAN, PROFIBUS…)
DATA ACQUISITION
Acquires data by utilizing the preferred communication protocol of the device. Collects information by either reading data in adjustable intervals (solicited messaging) or based on events (unsolicited messaging). Translates manufacturer specific output into standardized information including: Device state, Output quantity, Work order, operation and part number, Quality information, Process data
DEVICE CONTROL
Translates standardized input into manufacturer specific commands and transmits them to the device. Allows remote control, setting and changing of parameters as well as ‘tagging’ equipment with information like work order data which then can be read together with machine data.
M2M COMMUNICATION
Conditions at a local device can create standardized commands which are sent to the driver of a remote target. On reception these commands are translated into input understandable for the receiver. This data can be used to control the device, set or change parameters.
DATA OUTPUT
Outputs data acquired from all connected devices in homogenous, comparable form to files or database targets (Oracle or MS SQL Server) where it can be read by your application.
DATA INPUT
Enables you to send data and control your equipment from within your application. You can send standardized commands to CNCnetPDM which translates and transmits them to the respective device
APPLICATIONS
With CNCnetPDM you can deliver data from technical resources to any solution from MES/ERP to IoT and Big Data and everything in between. Examples:

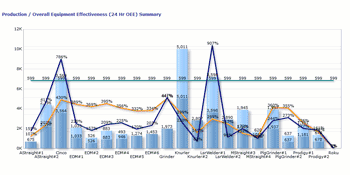

FIG 2: OEE Dashboards

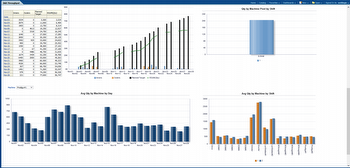

FIG 2: Throughput analysis

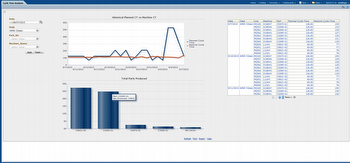

FIG 3: Cycle time analysis
BENEFITS
Connects highly diverse devices directly to your applications.
Enables consistent monitoring of your equipment and delivers actionable data in the appropriate context in near real time to responsible persons.
Provides functionality for machine-to-machine (M2M) communication and control of technical resources from within your applications.
Can be implemented in a timely, cost-effective and reliable manner because no additional hardware or modifications of the devices is required. A common machine park can typically be integrated with an existing IT infrastructure within weeks.
All tasks required for setup, configuration and maintenance can be performed from a remote location.
You profit by usage of customizable software interface modules for various device types apart from the elimination of hardware costs from significantly lower total costs of ownership on systems infrastructure.
SPECIFICATIONS
GENERAL
Program type
Foreground program or background service
Number of devices
Up to 54 per program or service instance
Extras
Attachable graphical interface for monitoring and configuration
PC / SERVER
Operating system
All Microsoft Windows Operating Systems from XP (>= SP2, 32 or 64 Bit) to Server 2019 or Windows 11
Software APIs
MTConnect Adapter, Socket Server, Open-Source Interface C#, OPC UA compliant Server
Database support
Oracle 11g - 12c Microsoft SQL Server 2008 - 2019 MySQL and MariaDB (Ver. >= 5.5)
REMOTE DEVICE
Communication interface
Any interface accessible by an external IT device e.g.: Bluetooth, USB, Serial Interface, Ethernet or manufacturer specific network- or bus-systems
