PRODUCTION SUPERVISOR | INTERNET OF THINGS

Top

This dashboard acts like an electronic whiteboard that automatically fetches data from the customers shop floor devices and provides real-time information about equipment status and production performance. The Plant Manager dashboard enabled the customer to replace the whiteboards at the shop floor that had to ben maintained manually in the past.

FIG.1: Production Supervisor Dashboard (click to enlarge, use scrollbar to see all details)

This dashboard enables the responsible persons to get information about:

• Actual state of the production equipment (A) in selected plants, departments and/or resource groups (B)
• Scheduled and actual hourly production rate (C). In case there is a delay between scheduled and actual production rate the dashboard outputs a visible alert for the equipment (D)
• In addition this report shows an analysis of the equipment status (Run, Idle and Down Time) (E) for selected machines and periods of time. Initially data of the current day is shown
• Scheduled work-orders and quantities for selected periods of time

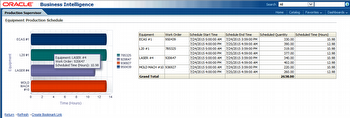

FIG.2: Scheduled work-orders and quantities (click to enlarge)

• Actual work-order, completion and scrap quantity

FIG.3: Actual work-order, completion and scrap quantity (click to enlarge)

• At the bottom of the dashboard status and output trend of the selected equipment is shown.

FIG.4: Equipment status and output trend (click to enlarge)

Without programming skills required the Production Supervisor Dashboard can easily be customized, for example to:

• Add additional colums like summary, average, minimum or maximum values for selected items
• Exclude, hide and move columns
• Filter and sort output by predefined rules
